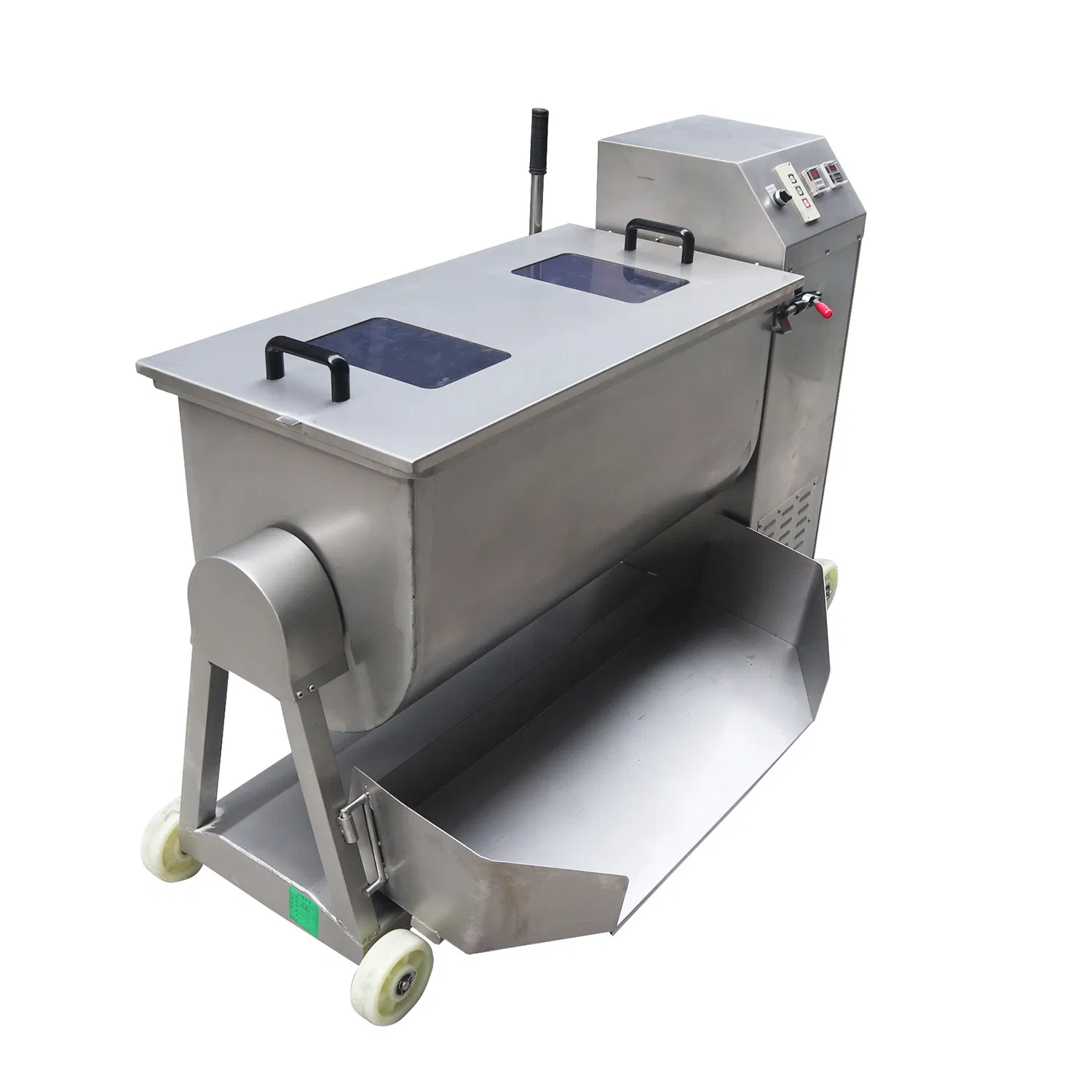

Selecting the right equipment for preparing consistent, high-quality fillings is crucial for producers of dumplings, samosas, pies, spring rolls, and similar products. The meat vegetable filling mixing machine plays a pivotal role in this process, automating a task traditionally done by hand. Understanding its key features before purchasing ensures the machine aligns perfectly with production needs and delivers a return on investment. Here’s an objective overview of critical aspects to evaluate:

1. Mixing Mechanism and Uniformity

The core function is achieving a homogenous blend without damaging the integrity of ingredients. Machines typically employ one of two main mechanisms:

• Rotating Shafts with Paddles: Paddles gently lift and fold ingredients from the bottom to the top of the mixing bowl. This method is often preferred for delicate vegetable chunks or when maintaining texture is paramount.
• Ribbon Mixers: Spiral ribbons rotate to push material towards the center and ends of the trough, creating a convective mixing action. This can be effective for denser pastes or dough-like consistencies.

Focus Point: Assess the design’s ability to distribute fats, liquids, seasoning, smaller meat particles, and larger vegetable pieces evenly without pulverizing components. Variable speed control is desirable for adjusting mixing intensity.

2. Construction and Durability

Given the demanding environment of food processing, robust construction is non-negotiable.

• Material: Food-grade stainless steel (AISI 304 or better, ideally 316L for corrosion resistance) should be used for all surfaces contacting the food, including the mixing bowl, paddles/ribbons, shafts, and housing. Check for smooth, crevice-free surfaces and polished welds.
• Frame: A sturdy framework constructed from stainless steel or galvanized/powder-coated carbon steel provides stability.
• Motor: A reliable, adequately powered motor ensures consistent performance, especially when mixing heavy, dense fillings or operating near capacity.

Focus Point: Inspect the quality of welds and surface finishes. Ensure all materials comply with food safety regulations.

3. Hygienic Design and Cleanability

Ease of cleaning directly impacts sanitation standards and operational downtime.

• Accessibility: Design should allow easy access to all contact parts. Removable paddles/ribbons and easily detachable bowls are significant advantages.
• Surface Finish: Smooth, polished surfaces (Ra < 0.8 µm) prevent product buildup and bacteria adherence.
• Drainage: Inclined bottoms or integrated drainage ports facilitate efficient emptying and cleaning.
• IP Rating: Motors and electrical components should have appropriate Ingress Protection (IP) ratings against water and dust splashes (e.g., IP55, IP65).

Focus Point: Look for features like minimized dead zones, absence of sharp corners, and compatibility with common cleaning-in-place (CIP) procedures.

4. Capacity and Throughput

Matching the machine’s size to production volume is essential.

• Bowl/Trough Capacity: Measured in liters or kilograms, this indicates the total volume of ingredients the machine can handle per batch. Manufacturers provide ranges (e.g., 50L to 300L).
• Effective Working Capacity: Typically around 60-70% of the total bowl volume to allow efficient mixing motion.
• Batch Cycle Time: The time required to mix one batch effectively (loading, mixing, unloading) determines overall throughput.

Focus Point: Don’t base selection solely on total bowl size. Calculate achievable throughput based on batch size, cycle time, and your required daily output.

5. Operation and Control Interface

User-friendliness and control impact consistency and training needs.

• Controls: Intuitive interfaces, often featuring programmable logic controllers (PLCs) with digital displays, allow for setting and saving mixing times and speeds for different recipes.
• Safety: Safety interlocks prevent operation when guards are open, and emergency stop buttons are standard requirements.
• Viewing: Optional viewing windows allow operators to monitor mixing progress without opening the machine.

Focus Point: Consider the complexity required; some lines benefit from simple timers, while others need recipe memory for frequent product changes.

6. Versatility and Adaptability

Flexibility can be crucial for diverse product lines.

• Variable Speed: Essential for handling different ingredient textures effectively.
• Attachments: Compatibility with different paddle/ribbon types (e.g., softer paddles for delicate items, scraping blades).
• Processing Range: Capability to handle ratios ranging from coarse mixtures (large meat/veg chunks) to finer emulsions.
• Footprint and Mobility: Space constraints or flexible production layouts may necessitate models with lockable casters.

Focus Point: Clearly define the range of fillings and consistencies required now and potentially in the near future.

7. Safety Compliance and Certifications

Ensure the machine meets necessary regulatory and safety standards for your operating region (e.g., CE, UL, NSF, ETL). Certifications demonstrate adherence to specific design and safety protocols.

Choosing a meat vegetable filling mixing machine involves a careful balance of these key features against specific production requirements, budget constraints, and future goals. Prioritizing robust construction, hygienic design, proven mixing efficiency, and appropriate capacity while considering ease of use and cleaning will lead to a well-informed decision that enhances product quality and production efficiency.
